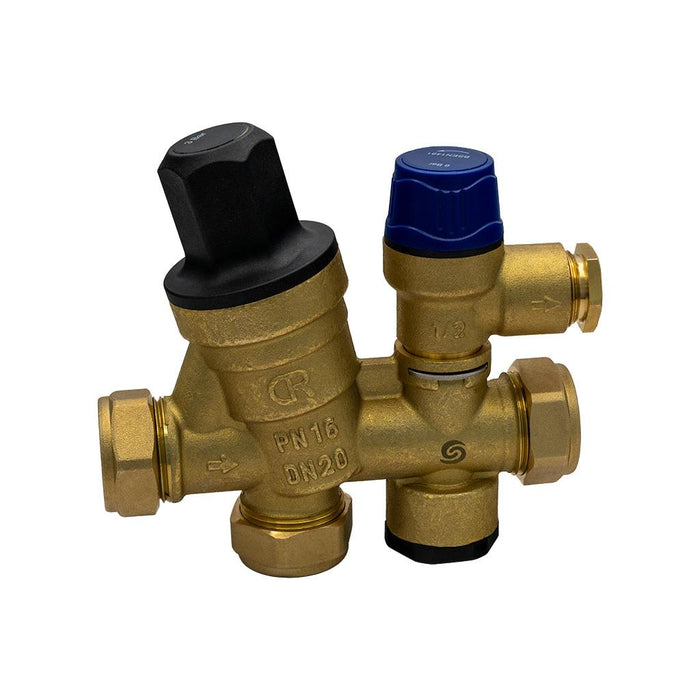

Southcoast 3/4” Safety Group ValvePart No: EMGV

3⁄4” Safety Group Valve contains:

• Drop tight pressure reducing valve
• Non-return valve
• Strainer
• 6-bar pressure safety valve that can be replaced.

The valve is bidirectional so it can be fitted horizontally or vertically.

The nuts and olives are dedicated 3⁄4”(21mm).

The safety valve is 1⁄2″.

It is manufactured from DZR Brass.

This can be identified by the CR (Corrosion Resistant) stamp on the body.

The Pressure Reducing Valve (PRV) is factory set to 3 bar but can be adjusted to between 1 and 4 bar.

There is an adjusting screw under a plastic pug on the top of the PRV.
